KTM 125 Duke [2014-2016] - Tankring BASIC

BASIC tank ring for KTM 125 Duke, model years 2014 to 2016

This model-specific tank ring allows a suitable Hepco & Becker tank bag with BASIC fastening to be used on the 2014–2016 KTM 125 Duke.

Matching fastening parts already combined

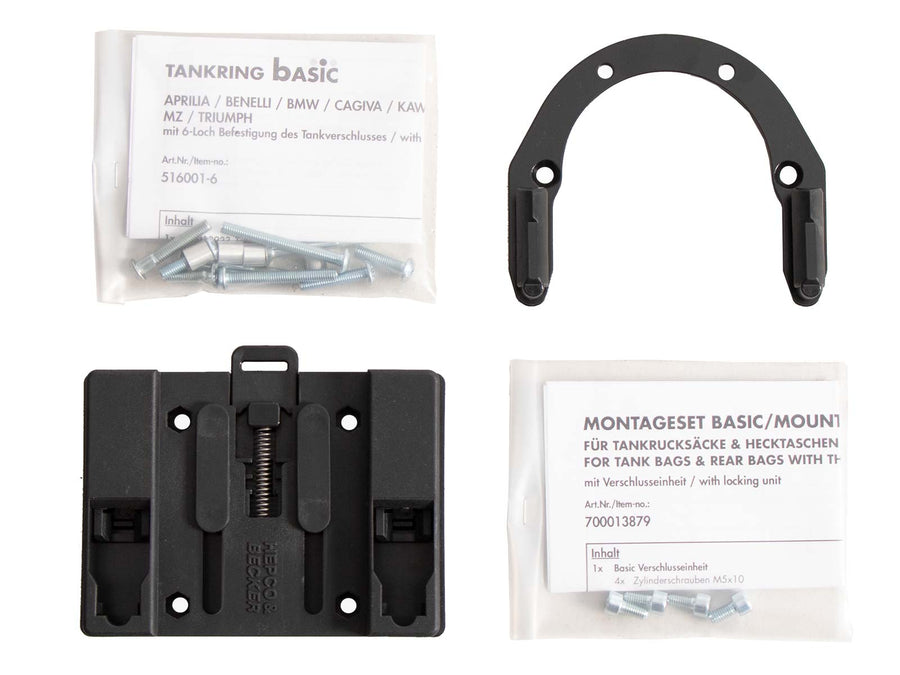

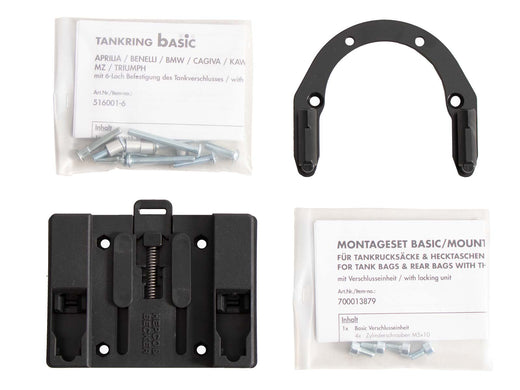

The complete product includes the black tank ring and corresponding retaining plate for the tank bag. Its position on the tank bag is selected according to the tank shape and steering lock. No additional BASIC retaining plate is required; a tank bag is not included.

Fit, click into place and release

The tank bag locks purely mechanically and audibly when placed on the ring. The strap on the forward side in the direction of travel is used to unlock it. The tank bag can then be removed. The fuel cap can still be opened with the ring installed.

• Recommended speed limit with tank bag: 130 km/h
• Recommended load: approximately 3 kg
• Product weight: 0.3 kg
• Colour: black

Same system for ring and counterpart

Only a BASIC ring and BASIC retaining plate can be used together. Combining them with Lock-it components is not possible. Neither ABE approval nor registration is required when installed as intended. KTM manufacturer information and model-specific requirements must be observed.
