Yamaha YFM 700 Grizzly EPS Limited Edition 4 WD [2009-2013] - Forged pistons

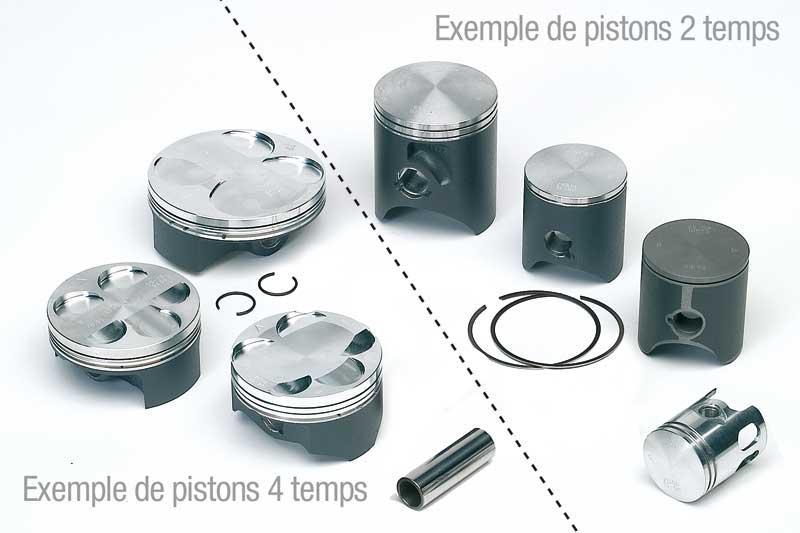

VERTEX forged pistons for Yamaha YFM 700 Grizzly

The VERTEX forged piston is designed for the Yamaha YFM 700 Grizzly EPS Limited Edition 4 WD from the 2009-2013 model year range. As a forged aluminum version, it is tailored to the technical characteristics of this application.

Design and technical data

• Brand: VERTEX
• Piston Type: Forged
• Material: aluminum
• Piston compression: standard
• Diameter Ø: 101.97 mm
• Letter oversize: C
• Oversize: +0.02
• Bore diameter: 102.00 mm
• Compression ratio: 9.2:1
• Piston rings: set
• Displacement/engine version: 4T

Vehicle assignment

The forged piston fits the Yamaha YFM 700 Grizzly EPS Limited Edition 4 WD, built between 2009 and 2013. The combination of vehicle name and complete year range supports targeted selection for this application.

Selection guide

The piston diameter of 101.97 mm, the bore diameter of 102.00 mm and the marking C and oversize +0.02 are particularly relevant for the assignment. The compression ratio is 9.2:1. The piston rings are designed as a set.

VERTEX specializes in the production of engine components for off-road machines. The brand is used by numerous motorcycle manufacturers as an original equipment manufacturer and is recognized for pistons with high mileage and performance.
