Vespa GTS 125 I-GET Touring [2020] - H20 I-Tech cylinder set - Ø63mm Piaggio/Vespa

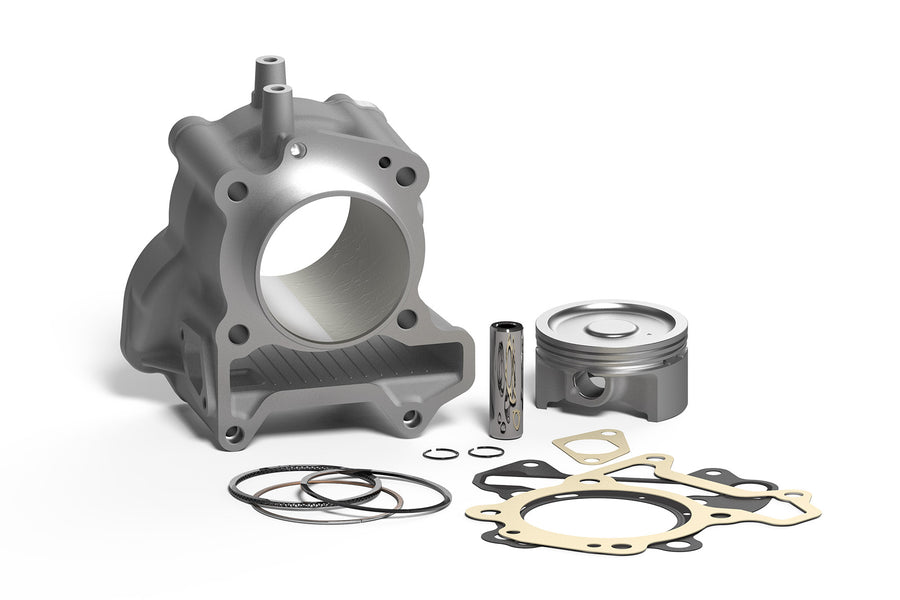

Malossi H20 I-Tech cylinder set with Ø 63 mm

The H20 I-Tech cylinder set from Malossi is designed for the Vespa GTS 125 I-GET Touring from 2020. With a bore of Ø 63 mm, 58.7 mm stroke and 183 cm³ displacement, it offers clearly defined dimensions for the targeted construction of the engine. The compression ratio is 11.48.

Cylinder and machining

• Bore: Ø 63 mm
• Stroke: 58.7mm
• Displacement: 183 cm³
• Compression ratio: 11.48
• Cylinder-piston clearance: 0.05 mm

The cylinder is made of a primary aluminum alloy with a high content of hardened and tempered silicon. The cylinder liner has a silicon carbide coating in a galvanic nickel die. A crossed smoothing with two diamond passes and very limited tolerances refines the tread. Machining is carried out on machine tools with high-precision numerical control. Newly calculated and improved heat exchange surfaces support the thermal design.

Pistons and piston rings

The ultra-compact, lightweight and reinforced piston features three rings. Its special aluminum alloy with a high silicon content is designed for low thermal expansion. The sliding surfaces have a tin coating. The piston is also machined on numerically controlled machine tools and has improved heat exchange surfaces.

• I° Ring: Compression ring made of nitrided and chrome-plated steel
• II° ring: special cast iron
• Wiper ring: three-piece, made of special chrome-plated steel alloy

The special rings combine a high level of sliding simplicity with very high mechanical resistance.

Vehicle assignment

Suitable for the Vespa GTS 125 I-GET Touring, built in 2020.

Factual note

These products are intended exclusively for use in competitions at designated venues in accordance with the regulations of the relevant sports associations. We assume no liability for improper use.
