Polaris Outlaw 525 IRC [2007-2011] - WÖSSNER forged pistons

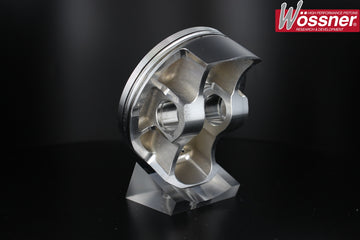

WÖSSNER forged pistons for Polaris Outlaw 525 IRC

The WÖSSNER forged piston is intended as a forged aluminum version for the Polaris Outlaw 525 IRC in the 2007-2011 model year range. The technical design supports a targeted selection based on piston diameter, bore diameter, oversize and compression ratio.

Design and technical data

• Material: aluminum
• Piston Type: Forged
• Specificity: Forged double bridge
• Diameter Ø: 94.96 mm
• Letter oversize: B
• Oversize: +0.01
• Bore diameter: 95.01mm
• Compression ratio: 11.0:1
• Rings Quantity: 2
• Stroke: 4T

Vehicle assignment

The piston is assigned to the Polaris Outlaw 525 IRC, built between 2007 and 2011. Before making your selection, check in particular the dimensions provided and the oversize label so that the design fits the technical requirements of your engine.

Technical selection

With the diameter Ø of 94.96 mm, the bore diameter of 95.01 mm and the marking B at Oversize +0.01, this piston offers clearly defined reference values for selection. The compression ratio of 11.0:1 and the design for Stroke 4T complement the key technical data. The forged double bridge characterizes the specific piston design.
