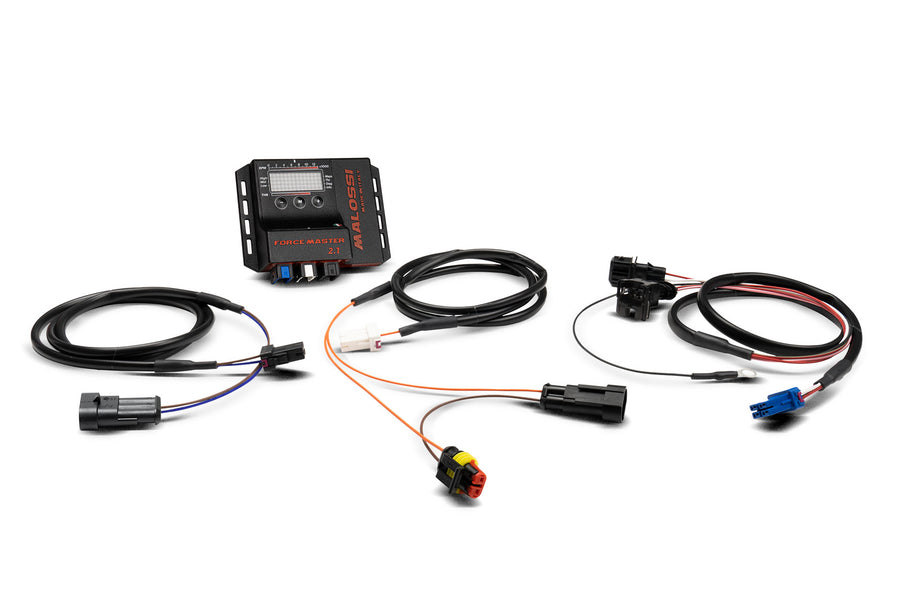

Piaggio MP 3 300 IE LT Business ABS ASR E 4 [2016-2018] - Force Master 2.1 electronic ignition box

MALOSSI Force Master 2.1 for the Piaggio MP 3 300 IE LT Business ABS ASR E 4

The Force Master 2.1 electronic ignition box offers clearer configuration via a redesigned user interface. An interface for K and CAN communication lines as well as the capacitive ignition input expand the coordination of the vehicle's performance management.

Function and setting options

The electronic ignition box allows the engine to be pushed beyond the limits of the original rev limiter. ± 14% is available in the levels LOW, HIGH and MID for the consumption setting. The speed limiter can be increased by +1,000 RPM.

• 4 different cards for different combinations of exhaust system, cylinder, head, camshaft and filter
• Temperature range = -30°C +80°C
• Minimum operating voltage = +7V
• Maximum operating voltage = +16V
• Average current consumption <-200mA
• Environmental protection = IP65

Available cards

• Curva 0: Malossi with DB killer exhaust system, original cylinder, original head, original camshaft and original filter
• Curva 1: Malossi with DB Killer exhaust system, original cylinder, Malossi head, original camshaft and original filter
• Curva 2: Original exhaust system, Malossi cylinder, Malossi head, original camshaft and original filter
• Curve 3: Malossi with DB Killer exhaust system, Malossi cylinder, Malossi head, original camshaft and original filter

Vehicle assignment

The Force Master 2.1 is assigned to the Piaggio MP 3 300 IE LT Business ABS ASR E 4 from the entire 2016-2018 model year range.

By combining the O2 regulator with the Force Master control unit, complete carburettor control is achieved. The products are intended exclusively for racing in specially designated locations and in accordance with the regulations of the relevant sports authorities. Any liability is declined for improper use.
