Piaggio Liberty 125 2 V E 3 (M 386) [2006-2008] - Force Master 2 Electronic control for I-Tech 4-stroke cylinders

Electronic control for the Piaggio Liberty 125

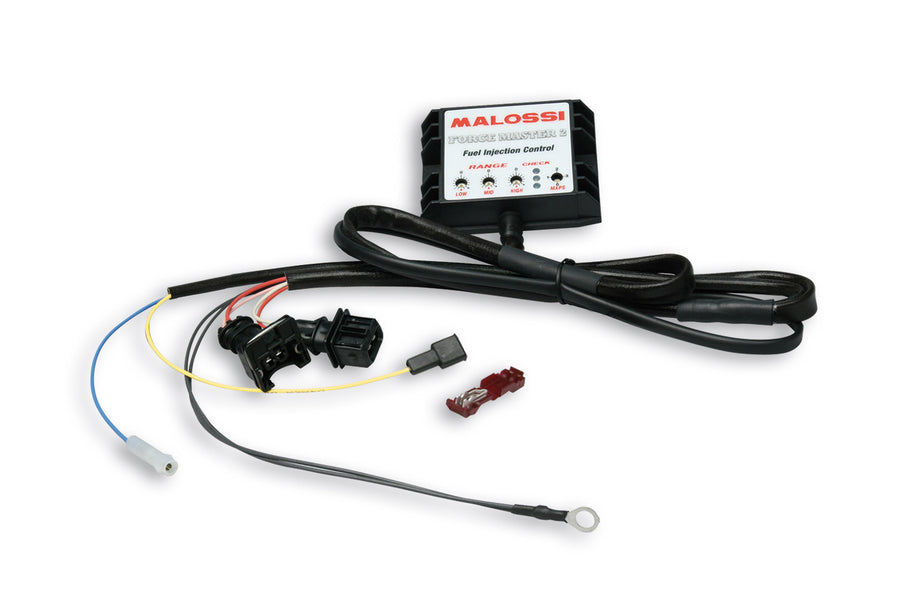

The MALOSSI Force Master 2 is an electronic control for I-Tech 4-stroke cylinders. It allows the injection to be adapted to various Malossi 4-stroke and original cylinders and provides four different maps.

Function and setting range

• Injection adjustment in the range of ± 20% at minimum, medium and maximum speed
• Raising the speed limiter by 2,250 rpm
• Original speed limiter: 9,250 rpm
• Speed limiter with Force Master: 11,500 rpm

Four maps for defined combinations

• Curve 0: Original exhaust system, Malossi cylinder kit ø 63 mm with 125 cc, original head, original camshaft and original filter
• Curve 1: Malossi exhaust system with db killer, Malossi cylinder kit ø 63 mm with 125 cc, original head, original camshaft and original filter
• Curve 2: Original exhaust system, Malossi cylinder kit ø 63 mm with 150 cc, original head, original camshaft and original filter
• Curve 3: Malossi exhaust system with db killer, Malossi cylinder kit ø 63 mm with 150 cc, original head, original camshaft and original filter

Vehicle assignment

The control is for the Piaggio Liberty 125 2 V E 3 (M 386), built between 2006 and 2008, assigned.

Factual note

In conjunction with the O2 controller, the Force Master 2 enables comprehensive control of fuel preparation. The products are intended exclusively for racing in specially designated locations in accordance with the regulations of the relevant sports authorities. No liability is assumed for improper use.
