Norton Commando V4CR [all years] - LTD-Style headlight H4, 7 inch, clear glass

7-inch LTD style in the context of Norton Commando and V4CR

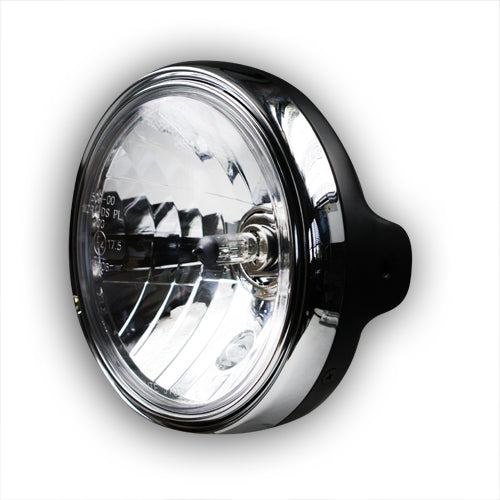

For Norton retro and custom projects around Commando or V4CR, a classic round headlight shape can serve as a design reference point. This universal model has a black housing, clear glass and an H4 prism reflector. The model context does not indicate a confirmed fit or adoption of existing attachment points.

Technical parameters

• H4 for 12V, 60/55W
• Parking light 4 W at 12 V
• M8 side mounting with 200mm spacing
• Outer diameter 201mm
• Glass/reflector diameter 168 mm

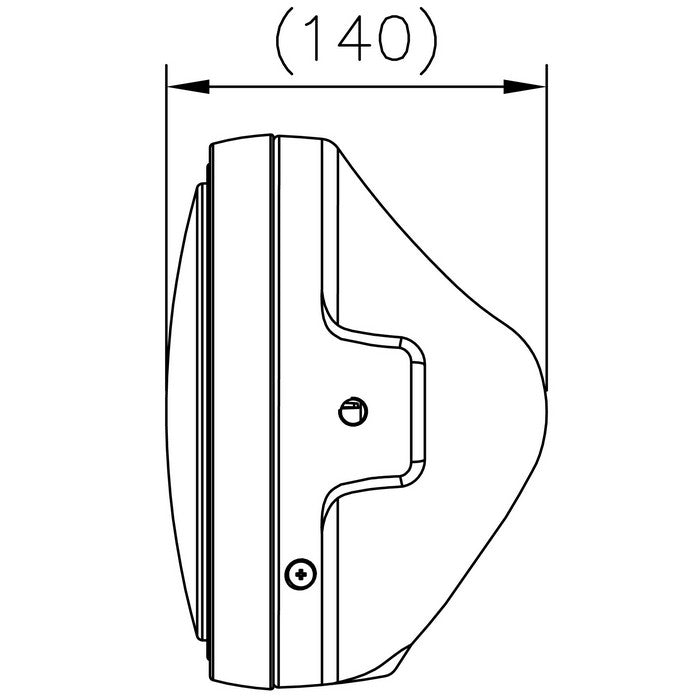

• Housing depth 138 mm
• E-approved

Compare retro idea with real dimensions

The proposed front should be completely measured. The position and width of the holders as well as the space required by the housing are crucial. In addition, there must be enough space behind the 138 mm for connections and tension-free cable routing.

Check on the specific motorcycle whether the electrical system matches the H4 main light and parking light. The freedom of movement at both steering stops must then be checked. Instruments, forks, tanks, cables and cables must not touch the headlight or its holders.

The E-test concerns the main headlight itself. It does not replace the assessment of the entire conversion in terms of fastening, installation height, alignment and permissibility. These points must be clarified independently for Commando and V4CR, especially for individually constructed front sections.
