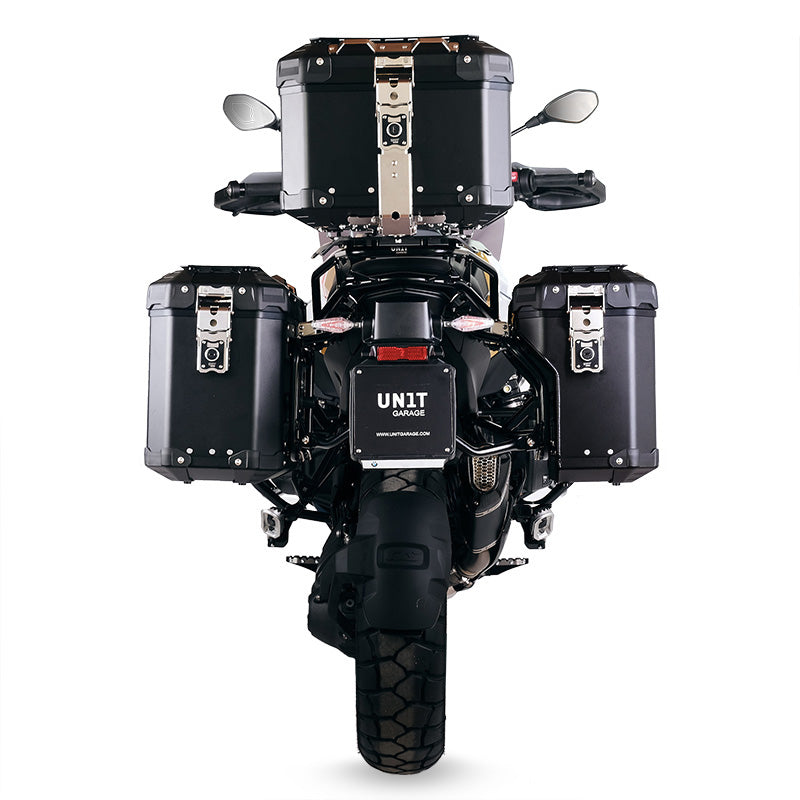

BMW R 1200 GS LC Rad [2013-2019] - Pair of Atlas Aluminum Cases 39L + 32L + Aluminum Case Frame R1200GS LC - R1250GS & ADV

Complete Atlas case set with 71 liters total capacity

The set combines two Atlas aluminum cases, manufactured entirely in Italy and assembled by hand, with a complete stainless steel frame set. The asymmetric 39- and 32-liter configuration accommodates the exhaust side and creates a robust luggage solution for compatible GS models.

Atlas Aluminum Cases

• One case with a capacity of 39 liters and one case with a capacity of 32 liters
• Body and lid made of high-strength, 1,5 mm thick aluminum alloy
• Back reinforced to 4 mm in the mounting area
• Fully removable lid that can be opened from either side
• MOLLE panels and additional attachment points on the lids for accessories or elastic nets
• Seals between the lid and case body
• Matte black finish

Locks and Durable Details

• Security fastener for round tube frames with an 18 mm diameter
• Automatically opening fastener for easy attachment and removal
• Locks, hinges, screws and fittings made of high-quality stainless steel
• Galvanically finished and electropolished accessories
• Fasteners designed to accommodate the included padlock and an additional lock
• Replaceable plastic corner protectors
• The pair of cases is supplied with lock cylinders and matching keys

Dimensions and Weight

• Dimensions per case: 390 mm high, 475 mm wide and 238 mm deep
• Capacity: 1 × 39 liters and 1 × 32 liters
• Weight per case: 6,8 kg

Stainless Steel Frame Set

The complete frame set accommodates the two Atlas cases and integrates into the design of the motorcycle. It is also suitable for Atlas aluminum cases in other sizes, UG002 and U003 bags, original BMW bags, and the U085 bag holder with adjustable front and two A9 mounts.

• Stainless steel with 18 mm tube diameter
• Matte black with an epoxy powder finish or silver with a microblasted and electropolished surface
• Complete installation kit and screws included
• On the GS model, the passenger footboards do not need to be replaced with the ADV version
• Can be combined with Unit Garage accessories or original accessories
• Can also be used with a passenger

Compatibility

The frame set is compatible with BMW R 1200 GS LC, R 1200 GS ADV LC, and R 1250 GS and ADV. For use on BMW models, a separate lock block kit with the original, codeable BMW mechanism is available to match the keys to the motorcycle key. The manufacturer continuously develops its products; images may show an earlier version.
