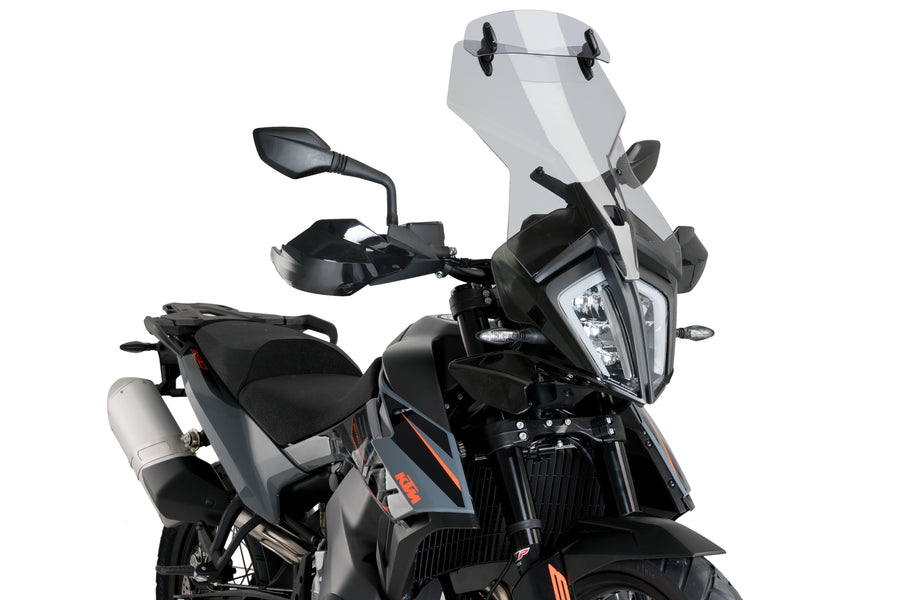

KTM 890 ADVENTURE R RALLY [2024] - touring screen with spoiler screen

PUIG touring screen with adjustable spoiler screen

More wind protection and targeted airflow for the KTM 890 ADVENTURE R RALLY [2024]: This PUIG touring screen combines a large acrylic screen with a variable spoiler screen. It redirects the airstream and thus supports comfort on longer journeys.

Variable height thanks to adjustable spoiler disc

The additional spoiler disc can be varied in position to further redirect the air flow. In the low position the disc measures 495 × 385 mm, in the high position 545 × 385 mm. The spoiler window is screwed on; The holes required for this are already present in the touring screen.

Robust acrylic construction

PUIG makes the touring screen from 3-4 mm thick acrylic. Their shape is designed for high wind protection, improved aerodynamics of the component and additional protection against possible foreign bodies while driving. The rounded edge has a radius of at least 2 mm and complies with TÜV specifications.

Available versions

The touring screen with spoiler screen is available in two optical versions:

• Tinted – Reference 3588H
• Sure – Reference 3588W

Product details at a glance

• Touring screen with variable spoiler screen
• Dimensions with low spoiler position: 495 × 385 mm
• Dimensions with high spoiler position: 545 × 385 mm
• Made from 3-4mm thick acrylic
• Pre-drilled mounting points for the spoiler window
• Rounded contour with at least 2 mm radius
• Available in tinted and clear versions

Note on ABE

An ABE document is available for this product. Please check its scope carefully to confirm suitability for your motorcycle and the selected version.
