Kawasaki KX 250 (KX 250 E) [1987] - WÖSSNER forged pistons

✔️ New part
ID: 15708498657606

€182,00 EUR

DELIVERY
Ready to ship | in 2-6 business days
Delivery with DHL in 6-10 business days.
PRODUCT DESCRIPTION

WÖSSNER forged pistons for Kawasaki KX 250 E, built in 1987

The WÖSSNER forged piston is designed as a piston for the Kawasaki KX 250 (KX 250 E) built in 1987. The design combines a forged piston type with aluminum and standard piston compression.

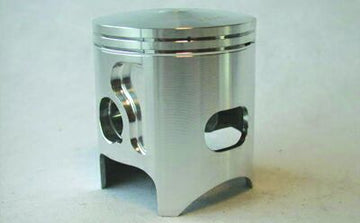

Kawasaki KX 250 (KX 250 E) [1987] - WÖSSNER forged pistons – product view
Kawasaki KX 250 (KX 250 E) [1987] - WÖSSNER forged pistons – product view

Technical features

  • Material: aluminum
  • Piston Type: Forged
  • Piston compression: standard
  • Diameter Ø: 68.94 mm
  • Letter oversize: 160
  • Oversize: +1.60
  • Bore diameter: 69.00 mm
  • Rings Quantity: 2
  • Stroke: 2T
  • Specificity: With suction window

Vehicle assignment

This forged piston is assigned to the Kawasaki KX 250 (KX 250 E), built in 1987. The vehicle selection should be based on the model name, year of manufacture and the specified piston dimensions.

Design and dimensions

With a diameter of 68.94 mm and a bore diameter of 69.00 mm, the piston is oversized +1.60. The corresponding letter of the oversize is 160. The intake window indicates the specific design of the piston. The standard piston compression, the 2T design and the dimensions are particularly relevant for the selection.

Kawasaki KX 250 (KX 250 E) [1987] - WÖSSNER forged pistons - detailed view
Kawasaki KX 250 (KX 250 E) [1987] - WÖSSNER forged pistons - detailed view

Description

WÖSSNER forged pistons for Kawasaki KX 250 E, built in 1987

The WÖSSNER forged piston is designed as a piston for the Kawasaki KX 250 (KX 250 E) built in 1987. The design combines a forged piston type with aluminum and standard piston compression.

Kawasaki KX 250 (KX 250 E) [1987] - WÖSSNER forged pistons – product view
Kawasaki KX 250 (KX 250 E) [1987] - WÖSSNER forged pistons – product view

Technical features

  • Material: aluminum
  • Piston Type: Forged
  • Piston compression: standard
  • Diameter Ø: 68.94 mm
  • Letter oversize: 160
  • Oversize: +1.60
  • Bore diameter: 69.00 mm
  • Rings Quantity: 2
  • Stroke: 2T
  • Specificity: With suction window

Vehicle assignment

This forged piston is assigned to the Kawasaki KX 250 (KX 250 E), built in 1987. The vehicle selection should be based on the model name, year of manufacture and the specified piston dimensions.

Design and dimensions

With a diameter of 68.94 mm and a bore diameter of 69.00 mm, the piston is oversized +1.60. The corresponding letter of the oversize is 160. The intake window indicates the specific design of the piston. The standard piston compression, the 2T design and the dimensions are particularly relevant for the selection.

Kawasaki KX 250 (KX 250 E) [1987] - WÖSSNER forged pistons - detailed view
Kawasaki KX 250 (KX 250 E) [1987] - WÖSSNER forged pistons - detailed view
