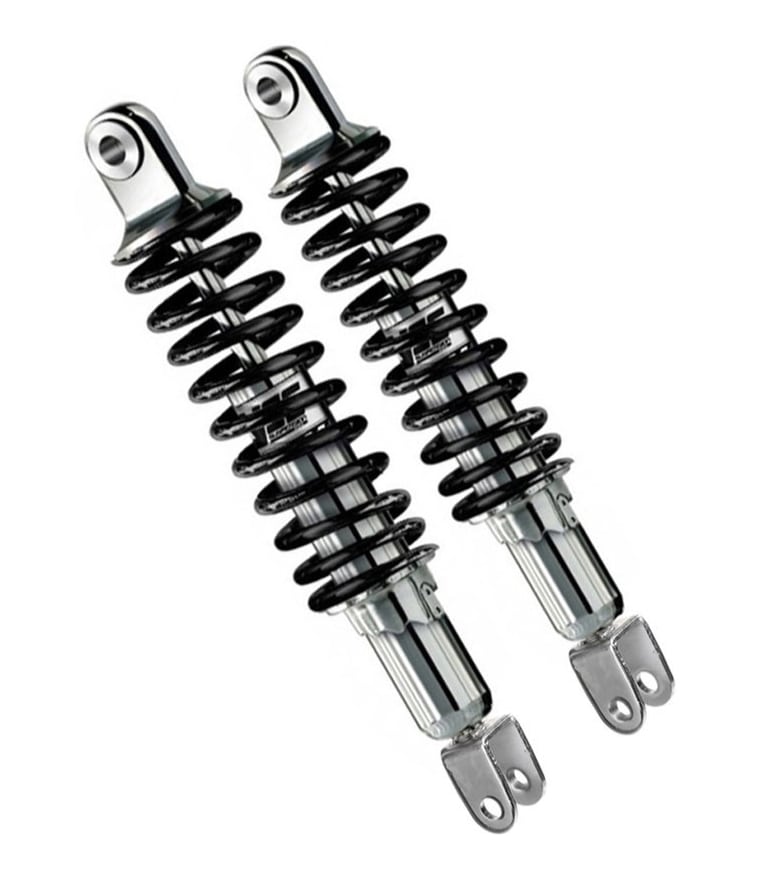

Honda CB 750 K Four (CB 750) [1969-1978] - double rear shock absorber, double tube hydraulics

YSS double rear shock absorber with double tube hydraulics

The rear YSS double shock absorber is designed as a replacement solution for the Honda CB 750 K Four (CB 750) built between 1969 and 1978. The hydraulic design combines a clearly defined damper type with an adjustable preload and thus supports needs-based adjustment of the rear chassis.

Function and execution

• Double strut for the rear suspension
• Double pipe hydraulics
• Damper type: hydraulic
• Setting: preload

The design is intended for replacing the rear dampers. The adjustable preload allows adjustment within the intended adjustment range. This allows the shock absorber to be specifically aligned to the respective chassis set-up without changing the technical design of the damper.

Technical data

• Length: 335mm
• Ø Piston: 22 mm
• Ø rod: 12 mm
• Spring Rate: 46-20-30-200
• Homologation: E-approved

Vehicle assignment

The YSS double rear shock absorber fits the Honda CB 750 K Four (CB 750), built between 1969 and 1978. The assignment applies to this entire year range.

The technical characteristics make it easier to compare with the existing chassis. The length of 335 mm, the hydraulic design, the adjustable preload and the specified spring rate are particularly relevant for the selection.
