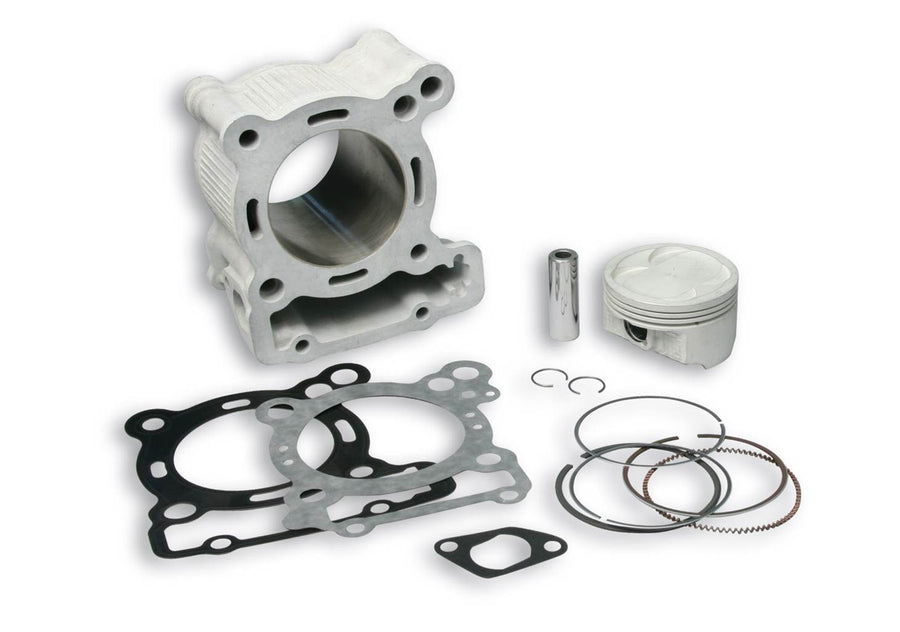

Aprilia 125 SX E 4 [2019-2020] - H2O cylinder-piston kit - Ø67mm

Malossi H2O cylinder-piston kit with Ø 67 mm bore

The H2O cylinder-piston kit from Malossi is intended for the Aprilia 125 SX E 4 from 2019 to 2020. Cylinders, pistons and piston rings are coordinated with each other using precisely defined materials and machining processes. The piston-cylinder fit is 0.05 mm and the compression ratio is 12:1.

Cylinder and raceway

• Bore: Ø 67 mm
• Compression ratio: 12:1
• Piston-cylinder fit: 0.05 mm
• High-silicon, refined and hardened aluminum alloy
• Inner liner with silicon carbide coating on a galvanic nickel matrix
• Cross-smoothing in two diamond steps while maintaining very tight tolerances
• Machining on high-precision CNC machines

Newly calculated, extra-large heat exchange surfaces are part of the cylinder construction and support thermal exchange during use.

Pistons and piston rings

The super-compact piston has three segments and is made from a special aluminum-silicon alloy with low thermal expansion. Addition of tin to the sliding surfaces, CNC machining as well as the reduced weight and reinforced design are among its design features. The piston also has extra large heat exchange surfaces.

• First compression ring made of nitrided and chrome-plated steel
• Second piston ring made of special steel
• Three-piece oil scraper made of alloyed and chrome-plated special steel
• Special piston rings with extremely high mechanical strength

Vehicle assignment

Suitable for the Aprilia 125 SX E 4, built between 2019 and 2020.

Note on use

This product is intended exclusively for competitions at designated venues in accordance with the regulations of the relevant sports associations. No liability is assumed for improper use.
