Yamaha SR 400 500 [all years] - LTD-Style headlight H4, 7 inches, clear glass

Clear glass round headlights in the area of the SR 400 and SR 500

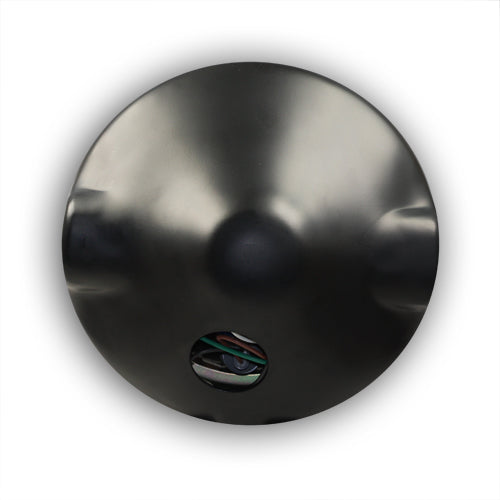

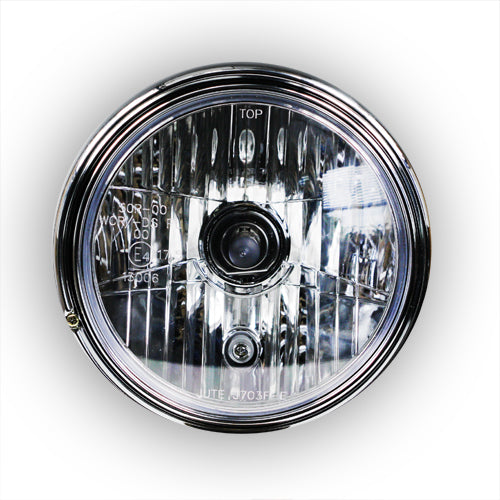

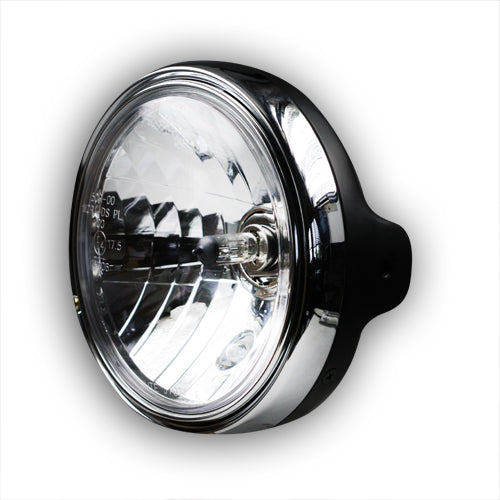

Reduced single-cylinder and café racer conversions thrive on clear proportions. For projects around the Yamaha SR 400 and SR 500, this universal 7-inch LTD-style headlight offers a classic round design. Its housing is black, with clear glass and an H4 prism reflector at the front. An automatic suitability for every SR version cannot be derived from this.

Relevant product data

• H4 main light: 12V 60/55W
• Parking light 4 W, also for 12 V
• M8 mounts on the sides with a distance of 200 mm
• 201mm outer diameter
• 168mm glass/reflector diameter

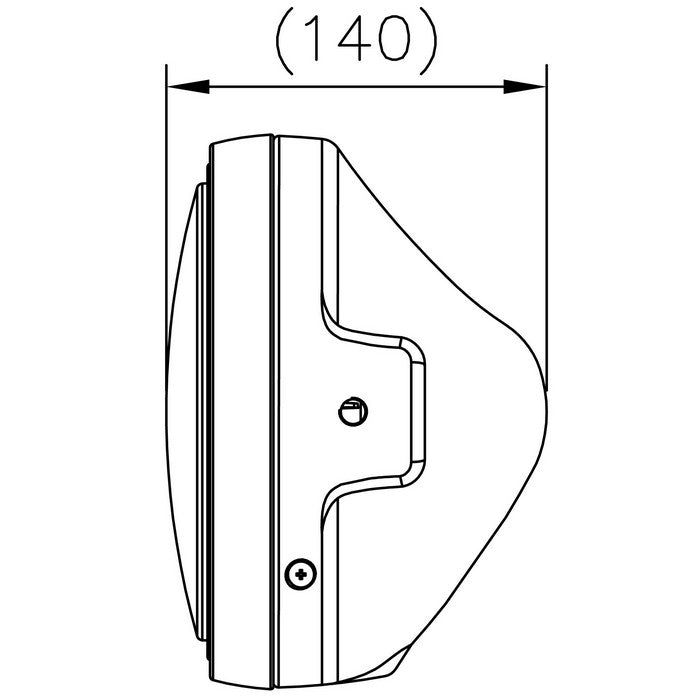

• 138 mm housing depth and E-tested

Plan proportions and assembly

Before making your selection, we recommend taking measurements of the actual front. Not only the 201 mm outer diameter is crucial, but also the position of the side holders and the space that the 138 mm deep housing requires. Check whether existing holders can be adopted or whether a suitable design would be required without assuming a specific solution.

Connections and electrical load must also be compared with the motorcycle. When the steering wheel is fully locked, there must be a distance to the tank, forks, instruments, cables and lines. The E-approved feature refers to the headlight; The installation height, alignment, fastening and permissibility of the entire conversion on the specific SR 400 or SR 500 must be checked independently.
