Vespa LX IE 150 [2009-2013] - Mono-shock rear wheel Gas Eco Line

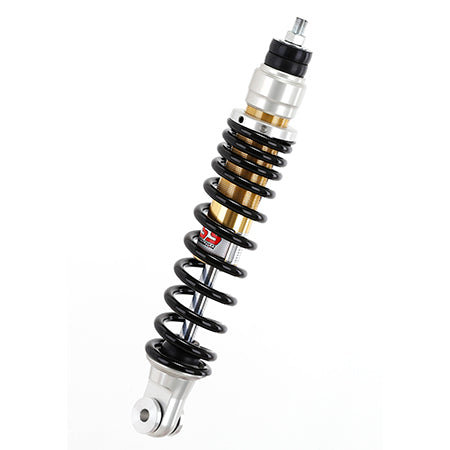

YSS mono-shock rear wheel Gas Eco Line for Vespa LX IE 150

The YSS mono-shock rear wheel from the Eco Line is designed as a replacement solution for the rear suspension of the Vespa LX IE 150. It combines a gas emulsion type shock absorber with an integrated pressure vessel and offers adjustable preload. This allows the spring preload to be adjusted to the desired setting.

Function and execution

The gas emulsion construction and the integrated pressure vessel are part of the design of this shock absorber. The adjustable preload supports a needs-based adjustment of the rear wheel suspension. As part of the YSS Eco Line, the shock absorber is intended for easy and cost-effective replacement of the damper unit.

Technical data

• Shock absorber piston: 30mm diameter
• Shock absorber rod: 12mm diameter
• Length: 285mm
• Spring Rate: 40-25-35-200
• Shock absorber type: gas emulsion
• Pressure tank: integrated
• Preload: adjustable
• Homologation: E-approved

Vehicle assignment

The mono shock absorber is suitable for the Vespa LX IE 150, built between 2009 and 2013. The assignment refers to this entire vehicle and year of construction range.

Factual note

When selecting, the specified length of 285 mm and the vehicle assignment to the Vespa LX IE 150 from the construction period 2009-2013 must be taken into account. The preload can be adjusted after assembly according to the intended setting.
