CAN-AM OUTLANDER 800 R EFI XT P [2010-2015] - Connecting rod rod - Can Am

HOT RODS Connecting Rod for Can-Am Outlander 800 R EFI XT P

The HOT RODS connecting rod set is intended for overhauling the engine of the CAN-AM OUTLANDER 800 R EFI XT P from the 2010-2015 model year range. The kit connects the connecting rod to the associated crankshaft assembly components and is designed for hot rod and OEM crankshaft rebuilds.

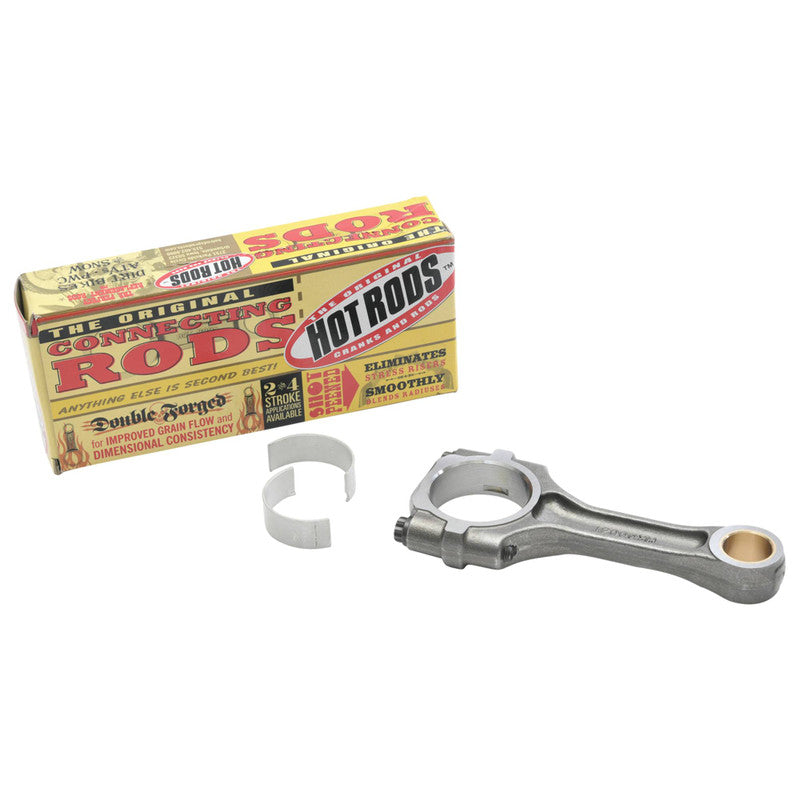

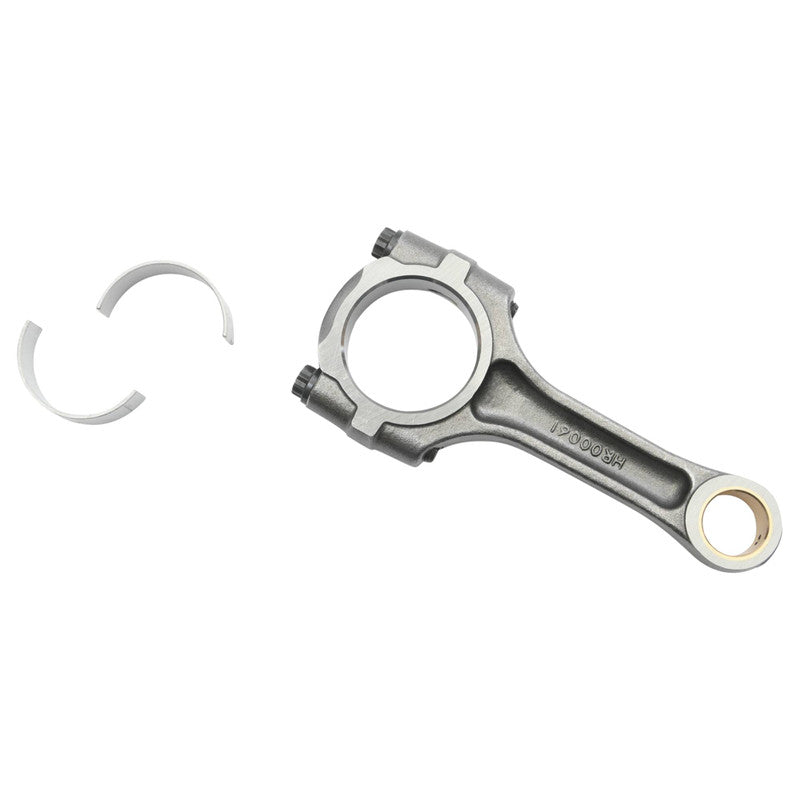

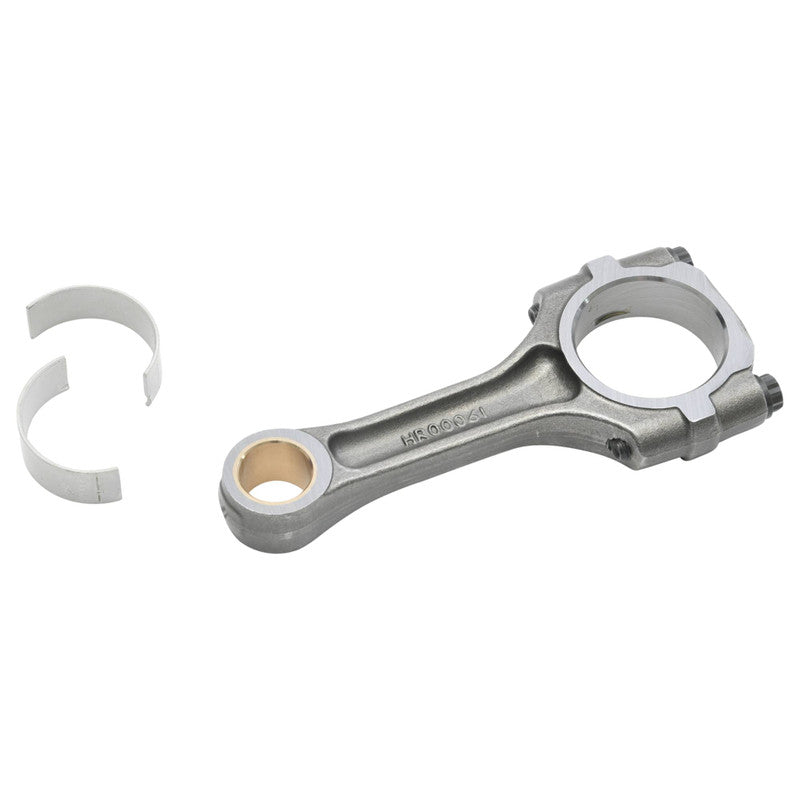

Components of the connecting rod set

• connecting rod
• Crank pin
• crank pin bearing
• upper connecting rod bearing
• Thrust washers, if applicable

The version is specified for a 4-stroke engine. The dimensions given support the selection based on the existing engine components and make coordination easier during an engine overhaul.

Technical data

• Large end OD: 61,500 mm
• Big End I.D.: 43 mm
• Connecting rod big end width: 19 mm
• Connecting rod center-to-center: 117 mm
• Connecting rod small end inner diameter: 20 mm
• Connecting rod small end width: 19 mm
• Small End OD: 31mm
• Pack size: ea
• Quantity/Unit: 1

Vehicle assignment

Suitable for the CAN-AM OUTLANDER 800 R EFI XT P, built between 2010 and 2015.
